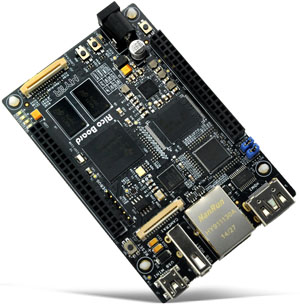

Image 3
MYIR | Single Board Computers

Rico Board

Now includes NABL Calibration Certificate.

The Rico Board is a high-performance, compact Single Board Computer (SBC) powered by the TI AM437x Sitara ARM Cortex-A9 processor, delivering up to 1GHz of processing power. It features 512MB DDR3 RAM, 4GB eMMC, and 16MB QSPI Flash, along with versatile connectivity options such as Gigabit Ethernet, USB, HDMI, LCD, and dual camera interfaces. Ideal for industrial automation, IoT, HMI, and AI-driven applications, the Rico Board supports Linux OS and offers extensive I/O expansion capabilities for embedded system development..

  • Detail
  • Special Features
  • Specification

The Rico Board offers a powerful solution for industrial and IoT applications, powered by the TI AM437x Sitara ARM Cortex-A9 processor, which is ideal for edge computing, AI, and real-time processing. With its ability to handle multi-camera inputs and high-quality video outputs, it excels in smart automation, control systems, robotics, and multimedia processing.

This board integrates a wide range of peripheral interfaces, making it highly adaptable for various projects, including industrial automation (PLC systems), IoT gateways, and video surveillance systems. Its dual-camera capability and 4K video decoding allow it to perform demanding AI-driven tasks such as video analytics, object detection, and machine learning applications.

Equipped with multiple expansion options via the 40-pin headers, it enables easy integration of additional sensors, I/O devices, and communication modules, ensuring scalability and flexibility for custom projects. Whether you're developing an industrial gateway, patient monitoring system, or embedded smart display, the Rico Board provides the reliability and performance needed for modern applications.

  • High-Performance Processor

    • Powered by the 1GHz ARM Cortex-A9 CPU and PowerVR SGX GPU for advanced graphics processing and efficient multitasking.

  • Memory & Storage

    • 512MB DDR3 RAM, 4GB eMMC, 16MB QSPI Flash, and TF card slot for reliable storage options and fast data access.

  • Versatile I/O Connectivity

    • Includes USB 2.0/3.0, Gigabit Ethernet, HDMI, LCD, dual-camera interfaces, CAN, RS232, and RS485 for comprehensive connectivity.

  • Expandable I/O Interface

    • 2x 40-pin expansion connectors for additional I/O interfaces including SPI, I2C, UARTs, CAN, ADC, and more for customized applications.

  • AI & Video Capabilities

    • Supports dual camera inputs, video decoding, and image processing, making it suitable for AI video analytics, industrial control, and surveillance.

  • Industrial-Grade Reliability

    • Temperature range of 0°C to 70°C, with a rugged fanless enclosure, designed to perform in demanding industrial environments.

  • Complete Linux Support

    • Pre-configured with Linux 4.1.18, compatible with various Linux-based distributions like Debian and Yocto for quick development.

  • Custom Expansion & Modules

    • Optional 4.3-inch or 7-inch LCD modules, camera and WiFi modules, as well as an expansion board for further customization.

General Features

  • Processor: TI AM437x Sitara ARM Cortex-A9, up to 1GHz

  • GPU: PowerVR SGX

  • Memory: 512MB DDR3, 4GB eMMC

  • Storage: 16MB QSPI Flash, Micro SD slot

  • Power Supply: 5V/1A (USB power or DC)

  • Operating Temperature: 0°C to 70°C (commercial), -40°C to 85°C (industrial)

Connectivity

  • Ethernet: 1x Gigabit Ethernet

  • USB: 1x USB 3.0, 1x USB OTG

  • Serial: RS232, RS485

  • I/O: SPI, I2C, CAN, UARTs

  • Video: HDMI, MIPI CSI camera interfaces, LVDS

  • Wireless: Optional WiFi/Bluetooth

  • Expansion: 40-pin GPIO connectors

Software Features

  • OS: Linux 4.1.18, Yocto, Debian, Ubuntu

  • AI Frameworks: TensorFlow, PaddlePaddle, Keras, PyTorch

  • Driver Support: USB, Ethernet, Audio, WiFi, Camera

  • Development Tools: u-boot, Kernel, Driver source code

Physical Characteristics

  • Dimensions: 70mm x 55mm (board), 135mm x 74.5mm x 35.8mm (box)

  • Weight: N/A

  • Power: 5V, 1A
